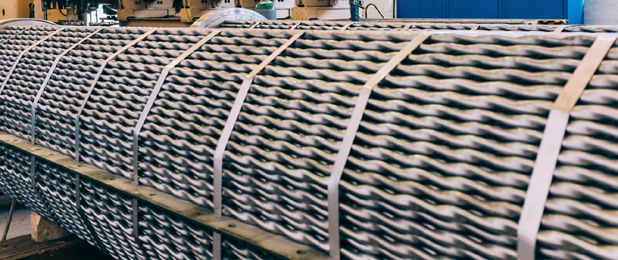

Twisted Tubes

Product Specification
Tube OD:	10mm to 50mm	3/8" to 2"
Tube WT:	0.6mm to 2.5mm	0.03" to 1.05"
Waves Dist.:	15mm to 40mm	0.59" to 1.58"
Tube Length:	12800mm max	42ft max



Material
Tube Material:	Carbon Steel: most common grade is SA179 Stainless Steel: most common grades are TP304, TP316, TP321, TP347, 2205 Alloy Steel: most common grades are T5, T9, T11, T12, T22, T91, P5, P9, P11, P12, P22, P91 Copper: most common grades are UNS12200, 14200, 70600, CuNi70/30, CuNi90/10 Nickel: most common grades are Inconel 625, Incoloy 825 Titanium: most common grade is SB338Gr.2

* This table is used as a general guide to our capabilities, please contact us for any other customized cases.



Product Features
Our twisted tubes are widely used in various heat exchangers due to their efficient heat transfer performance. The heat exchangers composed of twisted tubes enables both the tube and shell sides to flow in a spiral flow, promoting turbulence and thus improving heat transfer efficiency. This type of heat exchanger not only has a high heat transfer coefficient, but also has an almost equal pressure drop, making it widely used in applications that require efficient heat exchange, such as power, seawater desalination, ships, oil refining, and petrochemicals. The structural characteristics of twisted tubes give them advantages in handling viscous medium. Its unique channel design helps reduce the flow resistance of the medium, improve flow efficiency, and thus perform well in handling viscous medium such as waste paper water, cold slag water, and crude oil. In industrial production processes, a large amount of waste heat is often generated. The efficient heat transfer performance of twisted tubes makes them an ideal choice for waste heat recovery. By using twisted tube heat exchangers, these waste heat can be effectively recovered and utilized. Please contact us for your customized twisted tubes.

Production Capacity
Total five twisted tube lines, monthly production capacity is 300 tons in total.

Codes and Standards

1. GB/T 24590-2009 Enhanced Tubes For Efficient Heat Exchanger
2. As per drawings and client's Requirements
