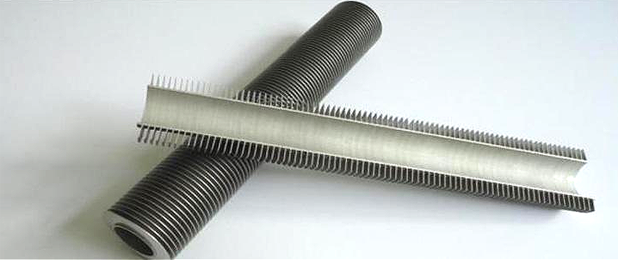

Extruded Fin Tubes

Product Specification
Tube OD:	10mm to 51mm	0.4" to 2"
Tube WT:	1.65mm to 3.0mm	0.065" to 0.118"
Tube Length:	22000mm max	72ft max
Fin Thickness:	0.3mm to 1.2mm	0.012" to 0.048"
Fin Height:	5mm to 16mm	0.2" to 0.63"
Fin Pitch:	100FPM to 555FPM	3FPI to 14FPI
Fin Type:	Extruded



Material
Tube Material:	Carbon Steel: most common grades are SA179, SA192, SA210A1, SA210C, SA106Gr.B Stainless Steel: most common grades are TP304, TP316, TP321, TP347, 2205 Copper: most common grades are UNS12200, 14200, 70600, CuNi70/30, CuNi90/10 Titanium: most common grade is SB338Gr.2
Fin Material:	Aluminum: most common grades are AL1100, AL1060, AL6063 Copper

* This table is used as a general guide to our capabilities, please contact us for any other customized cases.



Fabrication Process
Aluminum extruded fin tubes is formed from a bi-metallic tube. Consisting of an aluminum outer core and an parent tube of almost any material. The fin is formed by rolling material from  the outside of the exterior tube to give an integral fin. The extruded fin is manufactured by compressing an aluminum outer core tube onto the parent tube. The outer core tube is exposed to extremely high pressures which essentially "grows" the fins into the final fin profile. Maximum operating temperature for this fin type is 290℃.

Production Capacity
Total eight bi-metallic finning lines, monthly production capacity is 160000 meters in total.

Codes and Standards
As per drawings and client's Requirements

Surface Treatment and Protection
Each tube will be cleaned free of rust, grease, residues or any other contaminants before extruding.
